| Specifications of Stainless Steel Wire Rope / Cables: |
Specifications : DIN EN 12385-4-2008, GB/T 9944-2015
Material : 302, 304 , 316
Wire Rope Gauge: Dia. : 0.15mm to 50mm
Cable Construction:1×7, 1×19, 6×7, 6×19, 6×37, 7×7, 7×19, 7×37 etc.
Surface: Dull, Bright
PVC coated:Black PVC coated wire & White PVC coated wire
Main Products: stainless steel wire ropes, small-size galvanized ropes, fishing tackle ropes, PVC or nylon plastic-coated ropes, stainless steel wire ropes, etc.

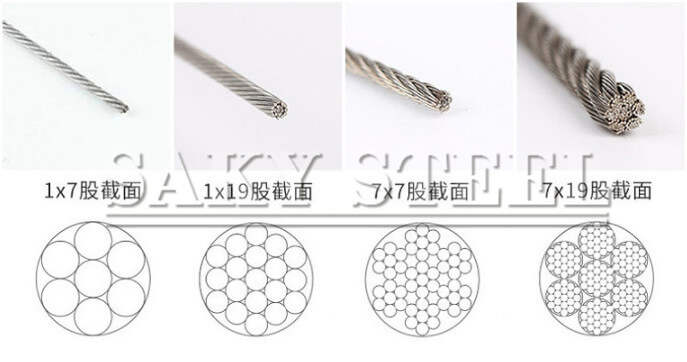

| Stainless Steel wire rope structures (SAKY STEEL): |
1) 1*7 means that the wire rope has 1 strand, there are 7 filaments in each Cable, and the wire rope is processed by 7 wires.
2) 1*9 means that the wire rope has 1 strand, there are 19 filaments in each Cable, and the wire rope is processed by 19 wires.
3) 7*7 means that the wire rope has 7 strands, and each cable contains 7 filaments, and the wire rope is processed from 49 wires.
4) 7*19 indicates that the wire rope has 7 strands, and each Cable contains 19 filaments. The wire rope is processed by 133 wires.
| General Technical Parameters Of Stainless Steel Wire Rope: |
|
Cables Structure |
Size (mm) |
Theoretical Weight (100meter/KG)
|
Breaking Force(KN) |
Weight(KG) |
|
1x7 |
0.3 |
0.04 |
0.093 |
9.5 |
|
0.4 |
0.08 |
0.157 |
16 |
|
0.6 |
0.18 |
0.382 |
39 |
|
0.8 |
32 |
0.667 |
68.1 |
|
1 |
0.5 |
1 |
102 |
|
1.2 |
0.7 |
1320 |
134.7 |
|
1x19 |
0.8 |
0.31 |
0.617 |
63 |
|
1 |
0.5 |
0.95 |
96.9 |
|
1.5 |
1.1 |
2.25 |
229.6 |
|
2 |
2 |
3.82 |
389.8 |
|
2.5 |
3.13 |
5.58 |
569.4 |
|
3 |
4.5 |
8.03 |
819.4 |
|
4 |
8.19 |
13.9 |
1418 |
|
5 |
12.9 |
21 |
2142 |
|
6 |
18.5 |
30.4 |
3102 |
|
7x7 |
0.5 |
0.08 |
0.142 |
14.5 |
|
0.8 |
0.26 |
0.461 |
47 |
|
1 |
0.4 |
0.637 |
65 |
|
1.2 |
0.65 |
1.2 |
122.4 |
|
1.5 |
0.93 |
1.67 |
170.4 |
|
1.8 |
1.35 |
2.25 |
229.6 |
|
2 |
1.57 |
2.25 |
229.6 |
|
3 |
3.7 |
6370 |
650 |
|
4 |
6.5 |
9.51 |
970.4 |
|
5 |
10.5 |
14.7 |
1500 |
|
6 |
15.1 |
18.6 |
1898 |
|
8 |
26.6 |
40.6 |
4142 |
|
7x19 |
1.2 |
0.54 |
0.75 |
76.5 |
|
1.5 |
0.85 |
1.17 |
119.4 |
|
1.8 |
1.23 |
1.68 |
171.4 |
|
2 |
1.52 |
2.08 |
212.2 |
|
3 |
3.42 |
4.69 |
478.6 |
|
4 |
6.7 |
10.7 |
1091.8 |
|
5 |
10.5 |
17.4 |
1775.5 |
|
6 |
14.9 |
23.5 |
2398 |
|
7 |
18.66 |
25.54 |
2606.1 |
|
8 |
24.38 |
33.35 |
3403.1 |
|
10 |
38.1 |
52.12 |
5318.4 |
|
16 |
97.53 |
133.43 |
136153 |
|
20 |
152.4 |
208.49 |
21274.5 |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| SAKY STEEL'S Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Ultrasonic test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Impact analysis
10. Metallography Experimental Test
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel's pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
| Stainless Steel Wire Rope Characteristics: |
1. High dimensional Accuracy up to ±0.01mm;
2. Excellent surface quality, good brightness;
3. Strong corrosion resistance, high tensile strength and fatigue resistance;
4. Chemical composition Stable, pure steel, low inclusion content; intact packaging and timely delivery. It has many characteristics such as high temperature resistance, good fatigue resistance, excellent breaking strength, long service life, durability, etc.
Applications:
• Marine
• Architectural
• Chemical, chemical fiber industry
• Shipbuilding
• Nylon nets
• Rings and hangers on the power line
• Decoration industry
• Rigging industry
• Fishing gear industry
• Automobile and motorcycle industry
