304 Ultra Thin Stainless Steel Strip Foil

Product Detail

304 ultra-thin stainless steel strip foil refers to a very thin and narrow stainless steel strip made from the 304 grade of stainless steel. Stainless steel strips in the 304 grade are known for their excellent corrosion resistance, high strength, and versatility. When the strip is referred to as "ultra-thin," it means that it has an exceptionally thin thickness, typically ranging from a few micrometers (µm) to tens of micrometers.

Specifications of 304 Ultra Thin Stainless Steel Strip Foil:

Grade	304, 304L,316,316L,317,317L
Standard	ASTM A240 / ASME SA240
Thickness	0.01 – 0.1mm
Width	8 – 300mm
Technology	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	soft, 1/4H, 1/2H, FH etc.
Applications	Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

TYPE OF 304 Ultra Thin Stainless Steel Strip Foil:

[caption id="attachment_757539" align="alignnone" width="272"] 304H Ultra Thin Stainless Steel Strip Foil[/caption]	[caption id="attachment_757540" align="alignnone" width="272"] 304 Ultra Thin Stainless Steel Strip Foil[/caption]	[caption id="attachment_757541" align="alignnone" width="272"] 304 Stainless Steel Strip Foil[/caption]
[caption id="attachment_757542" align="alignnone" width="272"] 304 Ultra Thin Stainless Steel Strip[/caption]	[caption id="attachment_757543" align="alignnone" width="272"] 304 Ultra 0.02mm Thin Stainless Steel Strip Foil[/caption]	[caption id="attachment_757544" align="alignnone" width="272"] 304 Ultra Stainless Steel Strip Foil[/caption]

EQUIVALENT GRADES OF 304 Ultra Thin Stainless Steel Strip Foil:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10

CHEMICAL COMPOSITION OF 304 Ultra Thin Stainless Steel Strip Foil:

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
304	≤0.07 max	≤2.00max	≤0.75 max	≤0.030max	-	-	8.00-11.00 max	18.00-20.00

304 Ultra Thin Stainless Steel Foil Roll Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201

Why Choose Us:

1. You can get the perfect material according to your requirement at the least possible price. 2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical. 3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement) 4. e guarantee to give a response within 24hours(usually in the same hour) 5. You can get stock alternatives, mill deliveries with minimizing manufacturing time. 6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

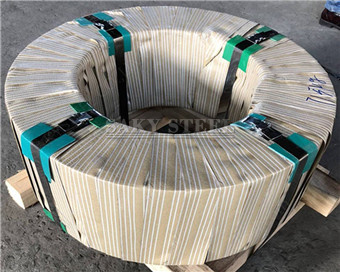

Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. 2. Saky steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
