316L Stainless Steel Wire

Stainless Steel Bright wire producing form Saky Steel:

Specifications of Hardness Stainless Steel Wire:

Standard	ASTM/JIS/GB
Grade	201,304,308,308L,309,309L,310S,316,321,347,430,etc.
Diameter Range	Φ0.03 ～Φ2.0mm
Tensile strength	Hard Bright：1800～2300N/mm2 Mid hard bright： 1200N/mm2 Fog Soft：500～800N/mm2
Craft	Cold Drawn and Annealed
Applications	Spring ,Screw,rope,steel brush,pin,metal mesh,etc



Stainless steel wire Chemical composition：

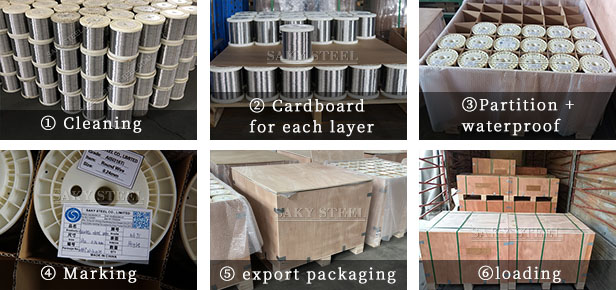

Packaging Information of  316l Stainless Steel Wire:

ⅰ.Diameter: Φ0.03～Φ0.25 mm ,can adopt ABS - DN100 plastic shaft packing , 2 kg per shaft , 16 shaft / per box; ⅱ.Diameter: Φ0.25～Φ0.80 mm ,can adopt ABS - DN160 plastic shaft packing , 7 kg per shaft , 4 shaft / per box; ⅲ.Diameter: Φ0.80～Φ2.00 mm ,can adopt ABS - DN200 plastic shaft packing , 13.5 kg per shaft , 4 shaft / per box; ⅳ.Diameter :more than 2.00, per volume weight in 30～ 60 kg, inner and outside plastic film packaging; If you have any special requirements please specify

Shaft SN	d1	d2	L1	L2	T	h	Shaft Weight(KG)	Load Weight(KG)
DIN125	125	90	124	100	12	20.6	0.20	3.5
DIN160	160	100	159	127	16	22	0.35	7
DIN200	200	125	200	160	20	22	0.62	13.5
DIN250	250	160	200	160	20	22	1.20	22
DIN355	355	224	198	160	19	37.5	1.87	32
P3C	119	54	149	129	10	20.6	0.20	5
PL3	120	76	150	130	10	20.6	0.20	3.5
NP2	100	60	129	110	9.5	20.6	0.13	2.5
PL1	80	50	120	100	10	20	0.08	1.0
P1	100	50	90	70	10	20	0.10	1.0

316L Stainless  steel wire FAQ:

 Q1. Can I have a sample order for stainless steel products?  A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days; Q3. Do you have any MOQ limit for stainless steel products order? A: Low MOQ, 1pcs for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered. Q5. Is it OK to print my logo on products? A: Yes. OEM and ODM are available for us. Q6: How to ensure the quality? A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable or SGS.
