430F 430FR Stainless Steel Bar

Saky Steel's 430FR is a ferritic stainless steel designed for soft magnetic components operating in corrosive environments. The 17.00% - 18.00% chromium makes corrosion resistance similar to 430F. The increased silicon content in this alloy allows increased magnetic characteristics over 430F in the annealed condition. 430FR has exhibited superior and consistent performance due to its higher electrical resistivity. The alloy was developed for applications that require a weak coercive magnetic force (Hc =1.88 – 3.00 Oe [150 – 240 A/m]) as needed in solenoid valves. Our controlled processing allows magnetic properties to be typically superior to industry norms. 430FR has an increased hardness over 430F, due to the increased silicon levels, reducing the deformation that occurs during the oscillation impacts that occur in AC and DC solenoid valves

Specifications of 430F stainless steel bar:

Specifications : ASTM A838 ; EN 10088-3 Grade: Alloy 2, 1.4105, X6CrMoS17 Length :5.8M,6M & Required Length Round Bar Diameter : 4.00 mm to 100 mm Bright Bar : 4mm – 100mm, Condition : Cold Drawn & Polished Cold Drawn, Peeled & Forged Surface Finish : Black, Bright, Polished, Rough Turned, NO.4 Finish, Matt Finish Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forged Etc. End : Plain End, Beveled End

430F 430FR Stainless Steel Bar Equivalent Grades:

STANDARD	UNS	WERKSTOFF NR.	JIS	EN
430F	S43020	1.4104	SUS 430F
430FR		1.4105	SUS 430FR	x6CrMoS17



430F 430FR SS Bar Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Fe
430F	0.12 max	1.25 max	1.0 max	0.06 max	0.15 min	16.0-18.0		Bal.
430FR	0.065 max	0.08 max	1.0-1.50	0.03 max	0.25-0.40	17.25-18.25	0.50 max	Bal.



Stainless Steel WERKSTOFF NR. 1.4105 Bars Mechanical Properties

Remark, if you want to know 430 430Se  Stainless Steel Bar, Pls click here;

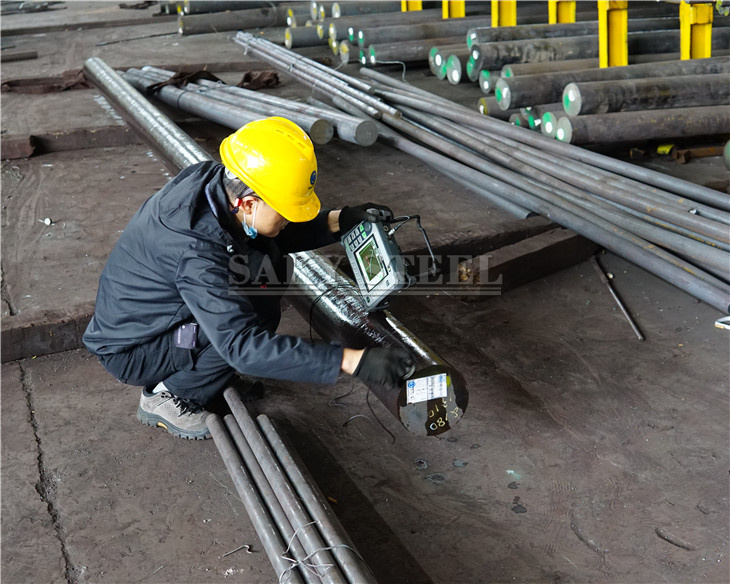

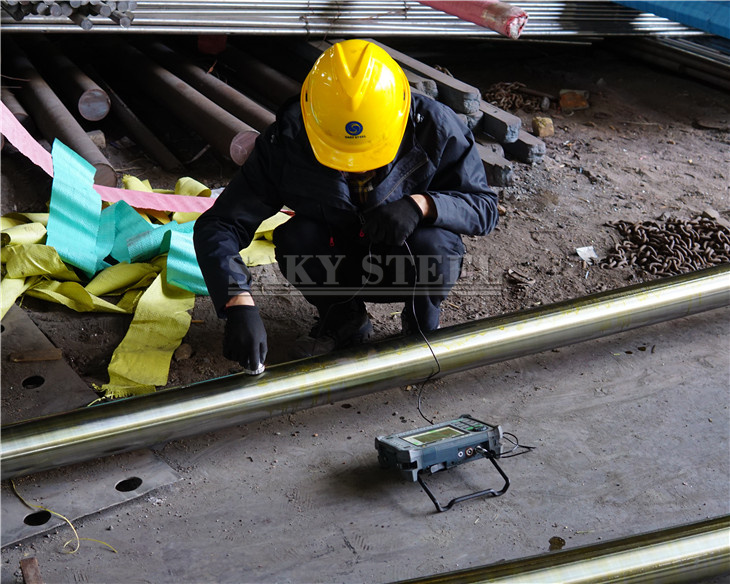

430FR Stainless Steel Bar UT Test

Ultrasonic testing (UT) is a key non-destructive inspection method used to assess the internal quality of 430F and 430FR stainless steel bars. These free-machining ferritic stainless steels are commonly used in automotive, solenoid valve, and precision-machined components where both magnetic properties and machinability are critical. UT is performed to detect internal defects such as cracks, voids, or inclusions that could compromise mechanical performance. High-frequency sound waves are introduced into the bar, and reflections from flaws are analyzed to ensure the bar meets required integrity standards. For critical applications, UT is conducted in accordance with ASTM A388 or equivalent specifications to guarantee structural soundness and consistent performance in demanding environments.

430 Stainless Steel Bar Roughness Test

Why Choose Us

1. You can get the perfect material according to your requirement at the least possible price. 2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical. 3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement) 4. e guarantee to give a response within 24hours(usually in the same hour) 5. You can get stock alternatives, mill deliveries with minimizing manufacturing time. 6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

SAKY STEEL'S Quality Assurance (including both Destructive and Non-Destructive) :

1. Visual Dimension Test 2. Mechanical examining like tensile, Elongation and reduction of area. 3. Ultrasonic test 4. Chemical examination analysis 5. Hardness test 6. Pitting protection test 7. Penetrant Test 8. Intergranular Corrosion Testing 9. Impact analysis 10. Metallography Experimental Test

Packaging:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. 2. Saky Steel's pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
