large diameter Seamless Stainless Steel Pipe tube

Product Detail

Specifications of Seamless stainless steel pipe:

1. Standard:	ASTM A312 A213 A269 A511 A789 A790, JIS3463, JIS3459,DIN2462,DIN17456
2. Grade:	304,310S,316, 316L,321,321H,317L,904L,2205,etc
3. OD Range:	200-800mm
4. Wall Thickness Range:	SCH-5S, SCH-10S, SCH-20S, SCH-40
5. Surface Finish:	Pickled,Bright, Sandblast, Polishing, etc
6. Techniques:	Hot-rolled, cold-drawn
7. Testing:	Chemical Analysis,Hydrostatic or Nondestructive Electric Test, Intergranular Corrosion Test,Flaring Test,Flattening Test,Flange Test,Grain Size Test,Air Under water Testing,Ultrasonic Testing,Eddy Current Testing
8. Packaging:	Bundle. Plywood Case. End Caps on Both Ends

Chemical Composition:

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
201	.15 Max	5.5 - 7.5	1.00 Max	.060 Max	.030 Max	16 - 18		3.5-5.5	.25 Max
202	.15 Max	5.5 - 7.5	1.00 Max	.060 Max	.030 Max	16 - 18		3.5-5.5	.25 Max
301	0.15 max	2.00 max	1.00 max	0.045 max	0.030 max	16-18		6–8	0.10
302	0.15	2.00 max	0.75	0.05	0.03	17–19	-	8–10	0.10
302B	0.15	2.00 max	2.0–3.0	0.05	0.03	17–19	-	8–10	-
304	0.08	2.00 max	0.75	0.05	0.03	18-20	-	8-10.5	0.10
304L	0.03	2.00 max	0.75	0.05	0.03	18-20		6–12	0.10
304H	0.04-0.01	2.00 max	0.75	0.05	0.03	18-20		8-10.5	-
310	0.25	2.00 max	1.50	0.05	0.03	24-26	-	19-22	-
310S	0.08	2.00 max	1.50	0.05	0.03	24-26	-	19-22	-
316	0.08	2.00 max	0.75	0.05	0.03	16-15	2–3	10–14	0.10
316L	0.03	2.00 max	0.75	0.05	0.03	16-18	2–3	10–14	0.10
321	0.08	2.00 max	0.75	0.05	0.03	17–19		9–12	0.10
410	.080-.150	1.00 max	1.00 Max	0.04	0.030 max	11.5-13.5		0.75max

Large Diameter Stainless Steel Pipe JIS G3468, CNS 13517 Specification:

Nominal	Nominal	Outside	SCH-5S	SCH-10S	SCH-20S	SCH-40
Diameter	Diameter	Diameter(mm)	Nominal Wall thickness(mm)	Nominal Wall thickness(mm)	Nominal Wall thickness(mm)	Nominal Wall thickness(mm)
A	B
150	6	165.2	2.8	3.4	5	7.1
200	8	216.3	2.8	4	6.5	8.2
250	10	267.4	3.4	4	6.5	9.3
300	12	318.5	4	4.5	6.5	10.3
350	14	355.6	4	5	8	11.1
400	16	406.4	4.5	5	8	12.7
450	18	457.2	4.5	5	8	14.3
500	20	508	5	5.5	9.5	15.1
550	22	558.8	5	5.5	9.5	15.9
600	24	609.6	5.5	6.5	9.5	17.5
650	26	660.4	5.5	8	12.7	-
700	28	711.2	5.5	8	12.7	-
750	30	762	6.5	8	12.7	-
800	32	812.8	-	8	12.7	-
850	34	863.6	-	8	12.7	-
900	36	914.4	-	8	12.7	-
1000	40	1016	-	9.5	14.3	-
1050	42	1066.8	When dimensions other than those given in the above-mentioned table are required,the dimensions shell be determined as agreed upon between the purchaser and the manufacturer(sakysteel)
\|	\|	\|
1650	66	1676.4

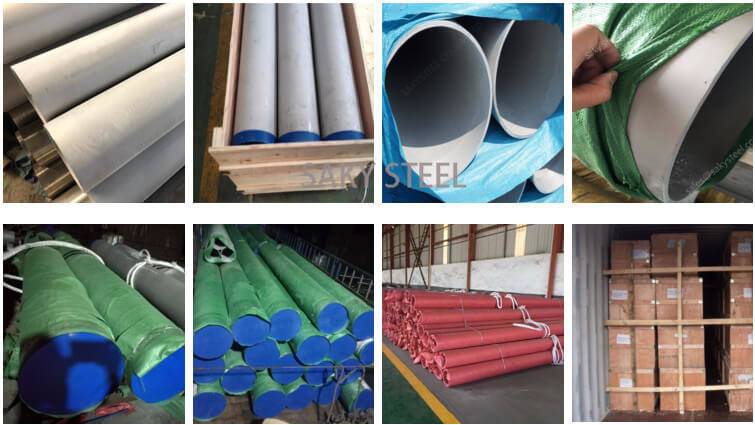

Packaging & Shipping:

Packaging Information of Stainless steel seamless pipe: PVC packing, carton packing, or as customer request wooden case. Inner packing: 1 plastic bag (polythene) / piece, and 500kgs is packed in one bundle. Outer packing: Kraft paper, wooden cases or according to customers' requests. Large Diameter Stainless Steel Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.

Applications：

Sakysteel mainly used as drilling pipe for petroleum geology, cracking pipe for petrochemical industry, boiler pipe, bearing pipe and high-precision structural pipe for automobile, tractor and aviation.
