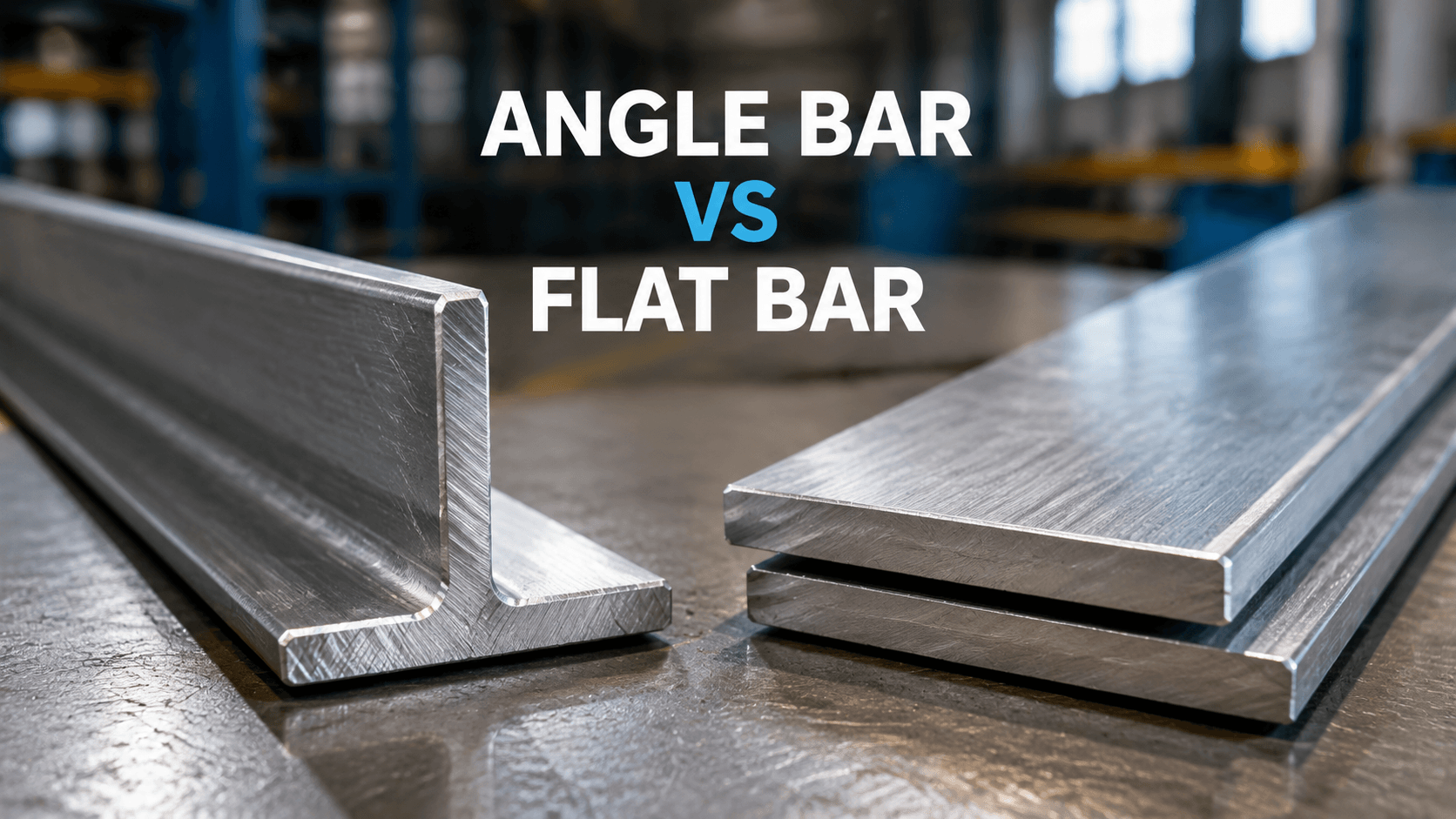

Angle Bar vs Flat Bar: Strength, Load Capacity and Fabrication Applications Guide

Introduction

Angle bar and flat bar are two commonly used metal profiles in fabrication, structural support and industrial manufacturing. Although both products are simple steel sections, their different cross-sectional shapes create different load-bearing characteristics.

The main difference between angle bar and flat bar is how they handle forces. Angle bar provides better structural rigidity and corner support, while flat bar offers simple fabrication, easy welding and flexible reinforcement options.

Choosing the correct profile depends on the required strength, loading direction, connection method and fabrication requirements.

What Is Angle Bar?

Angle bar is a metal profile with an L-shaped cross section. It is commonly available as equal angle and unequal angle depending on whether the two legs have the same or different dimensions.

The L-shaped structure provides additional stiffness compared with simple flat sections, making angle bar widely used for frames, supports, brackets and structural reinforcement.

Main Characteristics of Angle Bar

• L-shaped cross section
• Higher structural rigidity compared with flat sections
• Suitable for corner reinforcement and frame construction
• Available in equal and unequal angle designs

What Is Flat Bar?

Flat bar is a rectangular metal section with a flat surface and uniform thickness. It is one of the simplest structural profiles and is widely used in fabrication because of its easy cutting, drilling and welding characteristics.

Flat bar is commonly selected for connection plates, brackets, reinforcement strips and general fabrication work where a simple flat section is sufficient.

Main Characteristics of Flat Bar

• Simple rectangular cross section
• Easy cutting and machining
• Convenient for welding and fabrication
• Suitable for reinforcement and connection applications

Mechanical Difference Between Angle Bar and Flat Bar

The different cross-sectional shapes of angle bar and flat bar determine how they resist bending, compression and applied loads.

Feature	Angle Bar	Flat Bar
Cross Section	L-shaped section	Rectangular section
Structural Rigidity	Higher due to angled geometry	Lower compared with angle section
Load Distribution	Suitable for structural loads and supports	Suitable for simple reinforcement
Fabrication	Requires consideration of corner connections	Simple cutting and welding
Typical Use	Frames, braces, supports	Brackets, plates, reinforcement

Bending Resistance: Angle Bar vs Flat Bar

Bending performance is one of the most important factors when selecting between angle bar and flat bar. The cross-sectional shape determines how efficiently the profile resists external forces.

Angle bar provides support in two directions because of its L-shaped geometry. This makes it suitable for structural frames and components exposed to combined loads.

Flat bar can provide good bending resistance when installed in the correct orientation, but its performance is more dependent on thickness, width and loading direction.

Load Condition	Better Choice	Reason
Multi-direction structural loading	Angle Bar	L-shaped section provides additional stiffness
Simple reinforcement	Flat Bar	Easy installation and fabrication
Surface mounting	Flat Bar	Flat surface simplifies connection

Compression Performance and Structural Support

For compression loads, the profile shape plays an important role in maintaining structural stability.

Angle bars are commonly used in braces, frames and support structures because they provide better resistance against deformation when properly installed.

Flat bars are generally more suitable for secondary structural elements, connection plates and reinforcement where extreme compression resistance is not the primary requirement.

Application Requirement	Recommended Profile
Structural braces	Angle Bar
Support frames	Angle Bar
Base plates and connection plates	Flat Bar
Small reinforcement pieces	Flat Bar

Connection and Welding Considerations

Fabrication requirements are another important factor when choosing between angle bar and flat bar.

Angle Bar Connections

Angle bars are commonly used where corner connections or frame structures are required. Welding can provide strong joints, but the angle geometry requires proper positioning and preparation.

• Suitable for frame assembly
• Provides corner reinforcement
• Commonly used in welded structures

Flat Bar Connections

Flat bars provide a simple welding and fastening surface, making them convenient for brackets, supports and connection components.

• Easy cutting and drilling
• Simple welding operations
• Suitable for custom fabrication

Angle Bar vs Flat Bar: Fabrication Applications

Fabrication Application	Recommended Material	Reason
Equipment Frames	Angle Bar	Provides rigid structural support
Machine Brackets	Flat Bar / Angle Bar	Depends on load and connection design
Structural Supports	Angle Bar	Better stiffness and load distribution
Mounting Plates	Flat Bar	Simple flat connection surface
Reinforcement Strips	Flat Bar	Easy attachment and fabrication

Selection Guide: Angle Bar or Flat Bar?

The following guide helps engineers and fabricators select the correct profile based on the actual project requirements.

Requirement	Recommended Choice
Need structural support or frame construction	Angle Bar
Need simple reinforcement	Flat Bar
Need corner connection	Angle Bar
Need easy cutting and welding	Flat Bar
