How to Choose Stainless Steel Wire Rope: Construction, Grade and Service

Choose stainless steel wire rope by duty, construction, diameter, grade, termination and required design load—not by diameter alone. Two ropes with the same nominal diameter can have different flexibility, metallic area, breaking force, fatigue behavior and corrosion performance.

Quick selection answer: 1×19 is relatively stiff for standing rigging and tension members; 7×7 balances flexibility and stability; 7×19 is more flexible for repeated bending. The actual choice must also match the sheave, termination, environment and applicable safety rules.

Start With the Function

Separate static tension members, architectural cables, control cables, lifting ropes and running ropes. A rope that performs well as a stationary balustrade cable may be unsuitable for repeated bending over sheaves. Safety-critical lifting requires design and inspection under the applicable equipment rules; a web article cannot set the working load.

Construction Changes Performance

Construction	Typical behavior	Common selection focus
1×19	Low flexibility, good dimensional stability	Standing rigging and tension systems
7×7	Moderate flexibility	General cable assemblies and controls
7×19	Higher flexibility for bending	Running applications subject to qualified design

Sheave and drum geometry

A small bend radius increases wire stress and shortens fatigue life. State the minimum sheave or drum diameter, fleet angle, groove condition and number of bending cycles. Do not assume a more flexible construction automatically makes an undersized sheave acceptable.

Grade, Core and Termination

304 is widely used for general corrosion resistance; 316 is commonly evaluated for chloride or coastal exposure. The environment, cleaning practice and crevice geometry still matter. Core type affects flexibility, heat resistance and crushing behavior. End fittings, swaging, sockets, clips and splices can govern assembly capacity, so the termination and proof-test requirement belong in the RFQ.

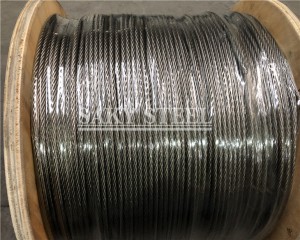

Stainless steel wire rope construction

Information to Include in the RFQ

Intended duty and applicable design or equipment standard
Grade, construction, nominal diameter and lay
Required minimum breaking force; working load only after design-factor approval
Sheave/drum dimensions, bending frequency and operating speed
Environment, temperature, lubrication and inspection plan
Termination type, assembly length, tolerance and proof testing
