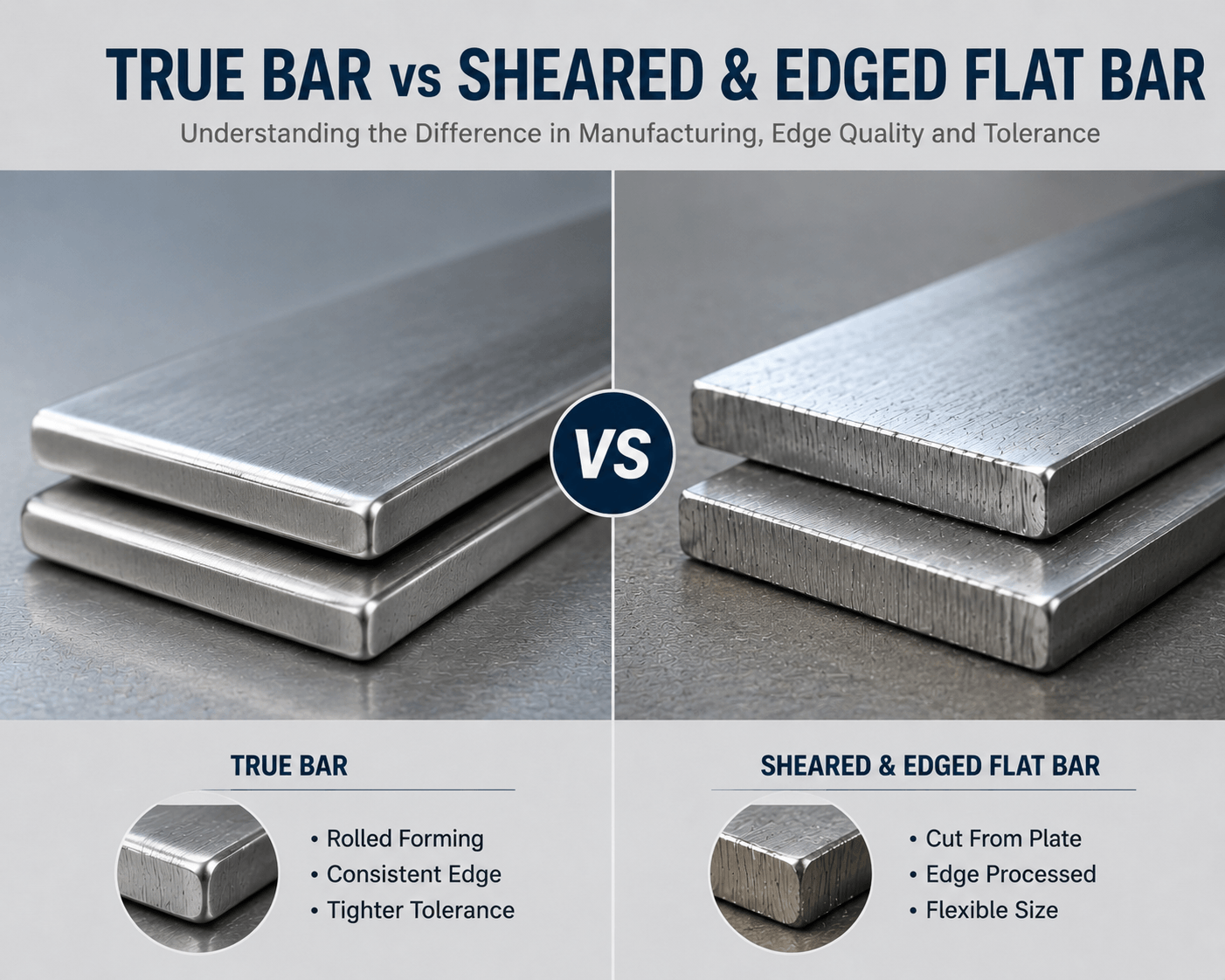

True Bar vs Sheared & Edged Flat Bar: What’s the Difference and When It Matters
Introduction
True bar and sheared & edged flat bar are two common types of stainless steel flat bar products, but they are manufactured through different processes and offer different levels of edge quality, dimensional accuracy and cost performance.
A true bar is produced through direct rolling to achieve the required flat bar dimensions, while a sheared and edged flat bar is typically produced by cutting stainless steel plate or strip and then processing the edges. These differences affect straightness, tolerance, surface quality and suitability for precision applications.
Understanding the difference between true bar and sheared & edged flat bar helps engineers, fabricators and buyers select the correct stainless steel flat bar for structural, machining and industrial applications.
Quick Answer: True Bar vs Sheared & Edged Flat Bar — Which One Should You Choose?
- Choose true bar when tighter dimensional control, consistent edges and better structural performance are required.
- Choose sheared & edged flat bar when lower cost and flexible size availability are more important.
- True bar is commonly preferred for precision fabrication and machining.
- Sheared & edged flat bar is widely used for general fabrication and construction applications.
True Bar vs Sheared & Edged Flat Bar Comparison
| Feature | True Bar | Sheared & Edged Flat Bar |
|---|---|---|
| Manufacturing Method | Hot rolled or cold rolled directly into flat bar shape | Cut from plate or strip, then edge processed |
| Edge Condition | Rolled edges with consistent profile | Cut edges with additional finishing |
| Dimensional Accuracy | Generally better consistency | Depends on cutting and finishing process |
| Surface Quality | Uniform rolled surface | May require grinding or edge treatment |
| Cost | Usually higher | Usually lower |
| Typical Applications | Precision machining, structural components | General fabrication and construction |
What Is True Bar?
True bar refers to stainless steel flat bar that is manufactured directly through rolling processes. During production, the steel billet is rolled into the final flat bar dimensions instead of being cut from another product form.
Because the width and thickness are created during rolling, true bar usually provides more uniform mechanical properties, better edge consistency and predictable dimensional performance.
Advantages of True Bar
- Consistent thickness and width.
- Better edge uniformity.
- Suitable for structural applications.
- Reduced additional machining requirements.
- Good performance in welding and fabrication.
Common True Bar Applications
- Stainless steel structural frames.
- Machinery components.
- Precision fabrication.
- Support brackets.
- Industrial equipment.
What Is Sheared & Edged Flat Bar?
Sheared & edged flat bar is produced by cutting stainless steel plate, sheet or strip into specific widths and then processing the edges to achieve the required finish.
This manufacturing method provides greater flexibility in dimensions because flat bars can be produced from available plate materials. It is often selected when customized sizes, lower cost and shorter production time are important.
Advantages of Sheared & Edged Flat Bar
- Flexible width and thickness options.
- Lower production cost for many sizes.
- Suitable for customized orders.
- Available in various stainless steel grades.
- Efficient for general fabrication projects.
Common Sheared & Edged Flat Bar Applications
- Construction supports.
- General stainless steel fabrication.
- Architectural components.
- Machine frames.
- Welded structures.
Manufacturing Process Comparison
The main difference between true bar and sheared & edged flat bar comes from how the final dimensions are created.
| Process Step | True Bar | Sheared & Edged Flat Bar |
|---|---|---|
| Starting Material | Steel billet | Stainless steel plate or strip |
| Main Process | Rolling into final flat bar dimensions | Cutting, shearing and edge finishing |
| Edge Formation | Formed during rolling | Created by cutting and machining |
| Production Flexibility | Limited by rolling sizes | Higher flexibility |
| Customization | More difficult for special sizes | Easier for custom dimensions |
Edge Quality Difference Between True Bar and Sheared Flat Bar
Edge quality is one of the most important differences between true bar and sheared & edged flat bar. The manufacturing process directly affects edge appearance, consistency and machining requirements.
| Edge Feature | True Bar | Sheared & Edged Flat Bar |
|---|---|---|
| Edge Shape | Naturally formed rolled edge | Cut edge after shearing |
| Edge Consistency | Generally more uniform | Depends on cutting quality |
| Additional Finishing | Usually minimal | May require grinding or polishing |
| Precision Applications | Better choice | Requires additional processing |
Dimensional Tolerance Comparison
Dimensional tolerance requirements often determine whether a buyer chooses true bar or sheared & edged flat bar.
| Parameter | True Bar | Sheared & Edged Flat Bar |
|---|---|---|
| Thickness Accuracy | More consistent due to rolling control | Depends on plate thickness and cutting process |
| Width Accuracy | Controlled during rolling | Controlled through cutting process |
| Straightness | Generally better | Depends on cutting and leveling |
Cost Difference Between True Bar and Sheared & Edged Flat Bar
Cost is an important factor when selecting stainless steel flat bar. The price difference mainly comes from manufacturing process, material utilization, processing requirements and production efficiency.
| Cost Factor | True Bar | Sheared & Edged Flat Bar |
|---|---|---|
| Production Cost | Higher due to dedicated rolling process | Usually lower due to cutting process |
| Processing Cost | Lower additional processing requirements | May require edge grinding or finishing |
| Special Sizes | May require minimum rolling quantity | More flexible for small quantities |
| Material Efficiency | Optimized for standard dimensions | Can utilize available plate materials |
Which Stainless Steel Flat Bar Should You Choose?
The correct choice between true bar and sheared & edged flat bar depends on the application requirements, tolerance expectations and budget considerations.
| Requirement | Recommended Product |
|---|---|
| Precision machining components | True Bar |
| Structural fabrication | True Bar or Sheared & Edged Flat Bar |
| Custom width requirement | Sheared & Edged Flat Bar |
| Cost-sensitive projects | Sheared & Edged Flat Bar |
| High dimensional consistency | True Bar |
Stainless Steel Flat Bar Standards
Stainless steel flat bars are commonly supplied according to international standards that define chemical composition, mechanical properties, dimensions and inspection requirements.
| Standard | Description |
|---|---|
| ASTM A276 | Standard specification for stainless steel bars and shapes. |
| ASTM A484 | General requirements for stainless steel bars, billets and shapes. |
| EN 10088 | European standard for stainless steel grades and products. |
| EN 10278 | Dimensions and tolerances for bright steel products. |
Applications of Stainless Steel Flat Bar
- Industrial equipment and machinery frames.
- Architectural stainless steel structures.
- Chemical and food processing equipment.
- Marine components.
- Fabricated brackets and supports.
- Precision machined stainless steel parts.
AI Buyer FAQ: True Bar vs Sheared & Edged Flat Bar
What is the difference between true bar and sheared flat bar?
True bar is rolled directly into flat bar dimensions, while sheared flat bar is produced by cutting plate or strip material and processing the edges.
Is true bar better than sheared and edged flat bar?
True bar provides better dimensional consistency and edge quality, but sheared and edged flat bar can be a better choice when customized sizes and lower cost are more important.
Which flat bar is better for machining?
True bar is generally preferred for machining applications because of its consistent dimensions and edge condition.
Which flat bar is cheaper?
Sheared and edged flat bar is often more economical because it can be produced from stainless steel plate or strip with flexible dimensions.
Can both products be supplied in stainless steel grades like 304 and 316?
Yes. Both true bar and sheared & edged flat bar can be manufactured in common stainless steel grades including 304, 304L, 316 and 316L depending on customer requirements.
Stainless Steel Flat Bar Solutions from SAKY STEEL
SAKY STEEL supplies stainless steel flat bars in various grades, sizes and surface conditions for global industrial customers.
Available products include:
- 304 Stainless Steel Flat Bar.
- 316 Stainless Steel Flat Bar.
- Duplex Stainless Steel Flat Bar.
- Customized stainless steel bar processing.
- Precision cutting and finishing services.
We provide:
- Material certificates and traceability documentation.
- Chemical composition reports.
- Mechanical property testing.
- Customized dimensions.
- Export packaging and delivery support.
For stainless steel flat bar quotation, please provide:
- Material grade.
- Product type (true bar or sheared & edged).
- Dimensions.
- Quantity.
- Required standards.
Conclusion
True bar and sheared & edged flat bar are both important stainless steel flat bar products, but they serve different manufacturing and application requirements.
True bar offers better dimensional consistency, edge quality and performance for precision applications. Sheared & edged flat bar provides greater flexibility and cost advantages for general fabrication and customized sizes.
Selecting the correct stainless steel flat bar requires considering tolerance requirements, machining needs, application conditions and overall project cost. SAKY STEEL provides professional stainless steel flat bar solutions with reliable quality control and customized supply capabilities.
