Stainless Steel Coil Pipe

Grade Datasheet of coiled stainless tube for Steel Structure:

Grade	C%	Si%	Mn%	P%	S%	Cr%	Ni%	Mo%	Cu%
304	0.08	1.0	2.0	0.045	0.03	18.0-20.0	8.0-10.0	-	--



304 coiled stainless tube mechanical properties:

T*S	Y*S	Hardness		Elongation
(Mpa)	(Mpa)	HRB	HB	(%)
520	205	--	--	40



Main coiled stainless tubes from sakysteel:

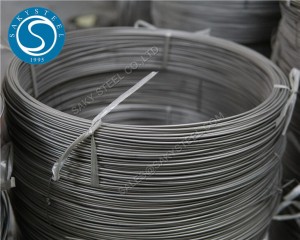

coiled stainless steel tube

coiled stainless steel tube

coiled stainless steel tube



Specifications of stainless steel coil pipe:

Grade	TP304/304L, 316/316L, 310S, 317L, 321, 347H etc (300 series are the main products, if you have special material requirements, please tell us)
Standard	ASTM A 213,ASTM A 269,EN10216-5
Size	OD:4.76-25.4mm
	WT:0.71-2.11mm
	Length:>1000Meters
	4.76*0.71mm/4.76*0.89mm/4.76*1.24mm
	6*1mm/6*1.5mm
	6.35*0.71mm/6.35*0.89mm/6.35*1.24mm/6.35*1.65mm
	7.94*0.71mm/7.94*0.89mm/7.94*1.24mm/7.94*1.65mm
	9.53*0.71mm/9.53*0.89mm/9.53*1.24mm/9.43*1.65mm
	10*1mm/10*1.5mm
	12*1mm/12*1.5mm/12*2mm
	12.7*0.71mm/12.7*0.89mm/12.7*1.24mm/12.7*1.65mm/12.7*2.11mm
	14*1mm/14*1.5mm/14*2mm
	15.88*0.89mm/15.88*1.24mm/15.88*1.65mm/15.88*2.11mm
	16*1mm/16*1.5mm/16*2mm
	19.05*0.89mm/19.05*1.24mm/19.05*1.65mm/19.05*2.11mm
	25.4*0.89mm/25.4*1.24mm/25.4*1.65mm/25.4*2.11mm



Stainless steel coil pipe	Outer diameter :>500mm
	The inner diameter:<1000mm
The height of the coil pipe	200mm-400mm
The length of each coil	Max length:<1000M
	Min length: >6m
General delivery length	200m-800m
Physical properties of bright-annealed coil pipe	A. ratio of elongation no less than 55%
	B. surface hardness no greater 170HV
	C. tensile strength no less than 550N/MM2
	D. yield strength no less than 220N/MM2
	E. bending angle>1800;min.bending radius<1.5*pipe diameter
Physical properties of general coil pipe (without bright annealing)	A. ratio of elongation no less than 35%
	B. surface hardness greater than 180HV
	C. tensile strength>600N/MM2
	D. yield strength>280N/MM2
	E. bending angle>900; bending radius>2*pipe diameter
Pressure resistance property	Take 8*0.5*c coil pipe as an example, the work pressure to be borne by the inner wall is no less than 60BAR



Coiled stainless tube Packaging:

sakysteel coiled stainless tube are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Stainless Steel Coil Pipe Packing

Stainless Steel Coil Pipe packing

Stainless Steel Coil Pipe packing
