316L Stainless Steel Tubing Procurement Data
Use the purchase order or drawing to define the product standard and dimensions before quotation. ASTM A269 is the general-service tubing standard; ASTM A312 applies when stainless steel pipe is specified. The two designations should not be treated as interchangeable only because the material grade is 316L.
| Order Item | Data to Specify | Procurement Check |
|---|
| Material | 316L / UNS S31603 / EN 1.4404 | Confirm the required designation on the PO. |
| Product form | Seamless tubing | State any process-specific requirement on the drawing. |
| Order standard | ASTM A269 for tubing; ASTM A312 only when pipe is specified | Do not select the standard by grade alone. |
| OD range shown | 6.0–914.4 mm | Provide required OD and dimensional tolerance. |
| Wall thickness shown | 0.6–12.7 mm | Provide nominal wall and tolerance. |
| Lengths shown | 5.8 m, 6 m and 12 m | State the required cut length and tolerance. |
RFQ Checklist for 316L Tubing
- Applicable standard and material designation
- Required product form and manufacturing route
- OD × wall thickness × length, including tolerances
- Surface finish and roughness requirement, if applicable
- Quantity and delivery destination
- Inspection and document requirements stated on the PO
For a specification-based quotation: send the above parameters through the existing inquiry form.
| Stainless Steel Seamless Pipe Produce Introduction from Saky Steel: |
Specifications of stainless steel seamless pipe:
Seamless Pipes & Tubes Size : 1 / 8" NB - 12" NB
Specifications : ASTM A/ASME SA213, A249, A269, A312, A358, A790
Standard : ASTM, ASME
Grade: 304,310, 310S, 314, 316,316L, 321,347, 904L, 2205, 2507
Techniques: Hot-rolled, cold-drawn
Length :5.8M,6M,12M & Required Length
Outer Diameter : 6.00 mm OD up to 914.4 mm OD
Thickness : 0.6 mm to 12.7 mm
Schedule : SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS
Types : Seamless Pipes
Form : Round, Square, Rectangle, Hydraulic, Honed Tubes
End : Plain End, Beveled End, Treaded
| Stainless Steel 316 /316L Seamless Pipes Equivalent Grades: |
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
JP |
AFNOR |
EN |
| SS 316 |
1.4401 |
S31600 |
SUS 316 |
304S11 |
SUS 316 |
- |
58E |
| SS 316L |
1.4436 |
S31603 |
SUS 316L |
304S11 |
SUS 316L |
- |
58E |
| SS 316 / 316L Seamless Pipes Chemical Composition and Mechanical properties: |
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
| S31600 |
0.08 max |
2.0 max |
1.00 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
11.00 - 14.00 |
| S31603 |
0.035 max |
2.0 max |
1.00 max |
0.045 max |
0.030 max |
16.00 - 18.00
|
2.00 - 3.00 |
10.00 - 14.00 |
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 7.9 g/cm3 |
1402 °C (2555 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
40% |

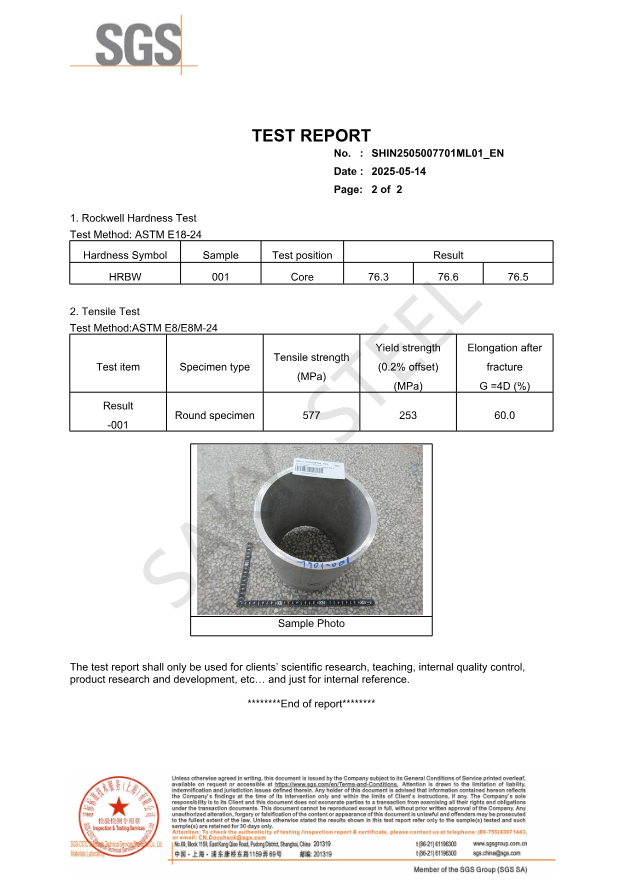

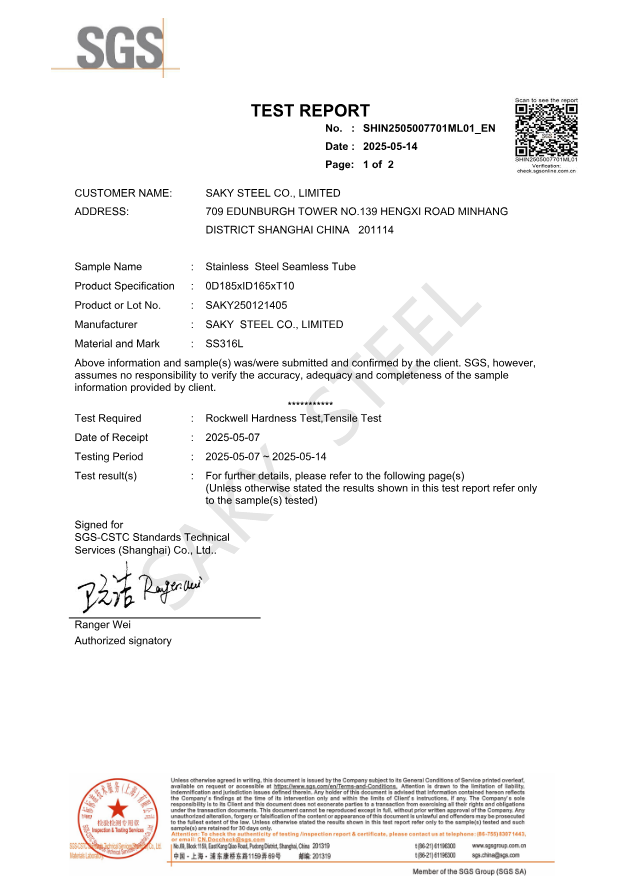

| 316L Stainless Steel Seamless Pipe Test Report: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Large-scale test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Flaring Testing
8. Water-Jet Test
9. Penetrant Test
10. X-ray test
11. Intergranular Corrosion Testing
12. Impact analysis
13. Eddy current examining
14. Hydrostatic analysis
15. Metallography Experimental Test
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel's pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
Shrink-wrapped
Carton boxes
Wooden pallets
Wooden boxes
Wooden crates
Applications:
1. Paper & Pulp Companies
2. High Pressure Applications
3. Oil and Gas Industry
4. Chemical Refinery
5. Pipeline
6. High Temperature Application
7. Water Pipe Lin
8. Nuclear Power Plants
9. Food Processing and Dairy Industries
10. Boiler & Heat Exchangers
