I-beams, also known as H-beams, are among the most widely used structural components in modern engineering and construction. Their iconic I- or H-shaped cross-section gives them excellent load-bearing capabilities while minimizing material usage, making them ideal for a wide range of applications from buildings and bridges to shipbuilding and industrial frameworks.
In this article, we will dive deep into the types of I-beams, their structural anatomy, and why they are so essential in construction and infrastructure projects.
Not all I-beams are the same. Several variations exist based on shape, flange width, and web thickness. Each type serves different structural purposes depending on load requirements, support conditions, and design standards.
Also referred to simply as I-beams, the S-beam is one of the most basic and traditional forms. It is commonly used in North America and conforms to ASTM A6/A992 specifications.
Parallel Flanges: I-beams have parallel (sometimes slightly tapered) flanges.
Narrow Flange Width: Their flanges are narrower compared to other wide flange beam types.
Weight Capacity: Due to their smaller flanges and thinner webs, standard I-beams are suitable for lighter loads and are typically used in smaller-scale construction projects.
Available Lengths: Most I-beams are produced in lengths up to 100 feet.
Typical Applications: Floor joists, roof beams, and support structures in low-rise buildings.
H-piles are heavy-duty beams designed specifically for deep foundation and piling systems.
Wide, Thick Flanges: The wider flange increases lateral and axial load resistance.
Equal Thickness: The flange and web often have equal thickness for uniform strength distribution.
Heavy Load Bearing: H-piles are built for vertical driving into soil or bedrock and can support very high loads.
Used in Foundations: Ideal for bridges, high-rise buildings, marine structures, and other heavy civil engineering applications.
Design Standard: Often conform to ASTM A572 Grade 50 or similar specifications.
W-beams, or Wide Flange Beams, are the most widely used beam types in modern construction.
Wider Flanges: Compared to standard I-beams, W-beams have flanges that are both wider and often thicker.
Variable Thickness: Flange and web thickness can vary depending on the size and application, which provides more flexibility in structural design.
High Strength-to-Weight Ratio: The W-beam’s efficient shape maximizes strength while reducing overall material weight.
Versatile Applications: Skyscrapers, steel buildings, bridges, shipbuilding, and industrial platforms.
Global Use: Common in Europe, Asia, and the Americas; often manufactured to EN 10024, JIS G3192, or ASTM A992 standards.
The stainless steel H/I beam welded line is a high-efficiency production process used to manufacture structural beams by joining stainless steel plates through submerged arc welding (SAW) or TIG/MIG welding techniques. In this process, individual flange and web plates are precisely assembled and continuously welded to form the desired H-beam or I-beam profile. The welded beams offer excellent mechanical strength, corrosion resistance, and dimensional accuracy. This method is widely used for producing custom-size beams for construction, marine, and industrial applications where standard hot-rolled sizes are not available. The welding process ensures full penetration and strong joints, allowing the beam to bear heavy structural loads while maintaining the superior corrosion resistance of stainless steel.

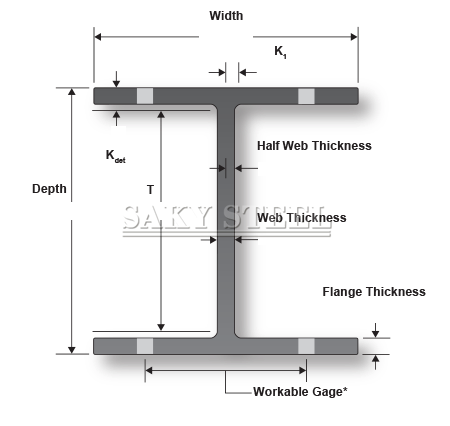

Understanding the structure of an I-beam is key to appreciating why it performs so well under stress.
The top and bottom horizontal plates of the beam.
Designed to resist bending moments, they handle compressive and tensile stresses.
Flange width and thickness largely determine the beam’s load-bearing capacity.
The vertical plate connecting the flanges.
Designed to resist shear forces, especially in the middle of the beam.
Web thickness impacts the overall shear strength and stiffness of the beam.
Section Modulus is a geometric property that defines the beam’s strength to resist bending.
Moment of Inertia measures the resistance to deflection.
The unique I-shape offers an excellent balance of high moment capacity with low material usage.
The R angle polishing process for stainless steel H/I beams refers to the precision polishing of the inner and outer fillet (radius) corners where the flange and web meet. This procedure enhances the surface smoothness and aesthetic appeal of the beam while also improving corrosion resistance by removing weld discoloration, oxides, and surface roughness in the curved transition zones. R angle polishing is especially important for architectural, sanitary, and cleanroom applications, where both appearance and hygiene are critical. The polished radius corners result in a uniform finish, reduce the risk of contamination buildup, and facilitate easier cleaning. This finishing step is often combined with full surface polishing (e.g., No.4 or mirror finish) to meet strict decorative or functional standards.
Because of their high strength and structural efficiency, I-beams and H-beams are used in virtually every type of construction and heavy engineering project.
Main Structural Frames: Used in columns, beams, and girders to support multi-story buildings.
Roof and Floor Systems: I-beams form part of the skeleton that supports floors and roofs.
Industrial Platforms and Mezzanines: Their high load-bearing capacity is ideal for mezzanine floor construction.
Bridges and Overpasses: W-beams and H-piles are frequently used in bridge girders and deck supports.
Railway Structures: I-beams are used in track beds and supporting frames.
Highways: Guardrails often use W-beam steel profiles for impact resistance.
Port Facilities and Piers: H-piles driven into underwater soils form foundational supports.
Shipbuilding: Lightweight yet strong I-beams are used in hull frames and decks.
Machinery Support Frames: I-beams offer strong foundations for mounting equipment.
Cranes and Gantry Beams: High-strength W-beams serve as overhead rails or tracks.
Engineers and architects choose I-beams because they offer multiple structural and economic benefits:
The I-shape maximizes load-bearing capacity while using less material, leading to lower steel consumption and project cost.
Different sizes and types (e.g., S-beams, W-beams, H-piles) are available to meet diverse structural needs.
Due to their optimized profile and widespread availability, I-beams offer one of the best cost-performance ratios in steel construction.
Flanges and webs can be easily cut, drilled, and welded using standard fabrication techniques.
When produced from high-strength structural steel (e.g., ASTM A992, S275JR, Q235B), I-beams offer excellent resistance to wear, corrosion, and impact.
When selecting the right type of I-beam for a project, consider the following:
Load Requirements: Determine the axial, shear, and bending loads.
Span Length: Longer spans often require wider flanges or higher section modulus.
Foundation or Frame Type: H-piles for deep foundations; W-beams for primary framing.
Material Grade: Choose the right steel grade based on strength, weldability, and corrosion resistance.
Standards Compliance: Ensure the beam complies with ASTM, EN, or JIS standards for your region or project.
I-beams—whether standard S-beams, W-beams, or heavy-duty H-piles—are the backbone of modern structural engineering. Their efficient design, wide range of configurations, and excellent mechanical properties make them suitable for everything from skyscrapers to bridges, machinery to offshore rigs.
When used correctly, I-beams provide unmatched strength, durability, and economy in construction. Understanding the differences between each type can help engineers, builders, and procurement specialists make informed decisions that optimize both performance and cost-efficiency.
